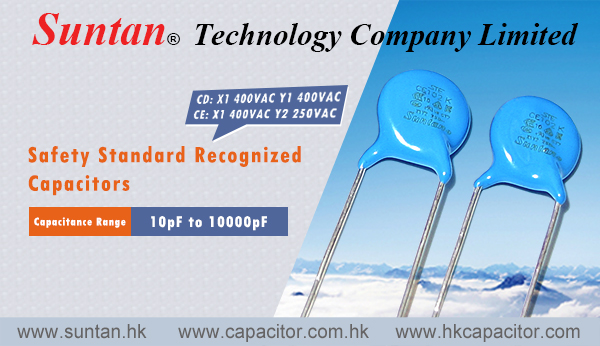

Suntan TS22 Safety Standard Recognized Capacitor – X1 / Y

Suntan Technology Company Limited

—All Kinds of Capacitors

This week, we introduce our Safety Standard Recognized Capacitor – X1/Y TS22, known for high precision, stability, and reliability. Ideal for across-the-line applications, these capacitors are compact, cost-effective, and safety standards recognized.

Operating Temperature Range-25°C to +85°C
Capacitance Range10pF to 10000pF
Capacitance Tolerance±10%, ±20%, +80-20%
Rated VoltageAC 125V, 250V, 400V
SubclassesCD: X1 400VAC, Y1 400VAC; CE: X1 400VAC, Y2 250VAC
Temperature Coefficient2B(Y5P) ±10%, 2E(Y5U) +22%~-56%, 2F(Y5V) +22%~-82%
Dissipation Factor (tan δ)2B: 2.5% max. at 25℃ and 1 KHz, 1±0.2 Vrms
Insulation Resistance at 20℃2E/2F: 2.5% max. at 25℃ and 1 KHz, 1±0.2 Vrms
Dielectric Strength10000MΩ at 500VDC for 1 min; 1500V AC for 60 sec (250V AC); 4000V AC for 60 sec (400V AC)

For more details, check the datasheet.

Welcome to contact us to learn more about our parts. Reach us at or

Stay tuned for more updates and product announcements!

All Kinds of Capacitors – All Kinds of Capacitors, Your Trusted Partner in Electronic Components.
